RAV4 Electric Hybrid Dual Engine SUV

The RAV4 Electric Hybrid Dual Engine SUV is equipped with a plug-in hybrid system consisting of a 2.5L DYNAMIC FORCE engine and single/dual electric motors. The maximum power of the engine in the two-wheel drive models is 132 kW, while the front main drive motor, in the hybrid version, is increased by 50% from 88 kW to 134 kW, resulting in a maximum system power of 194 kW. The battery pack is a lithium-ion battery pack, with a 0-100 km/h acceleration time of 9.1 seconds, WLTC fuel consumption of 1.46 liters per 100 kilometers, and a WLTC electric range of 78 kilometers.

Send Inquiry

Product Description

1.Introduction of RAV4 Electric Hybrid Dual Engine SUV

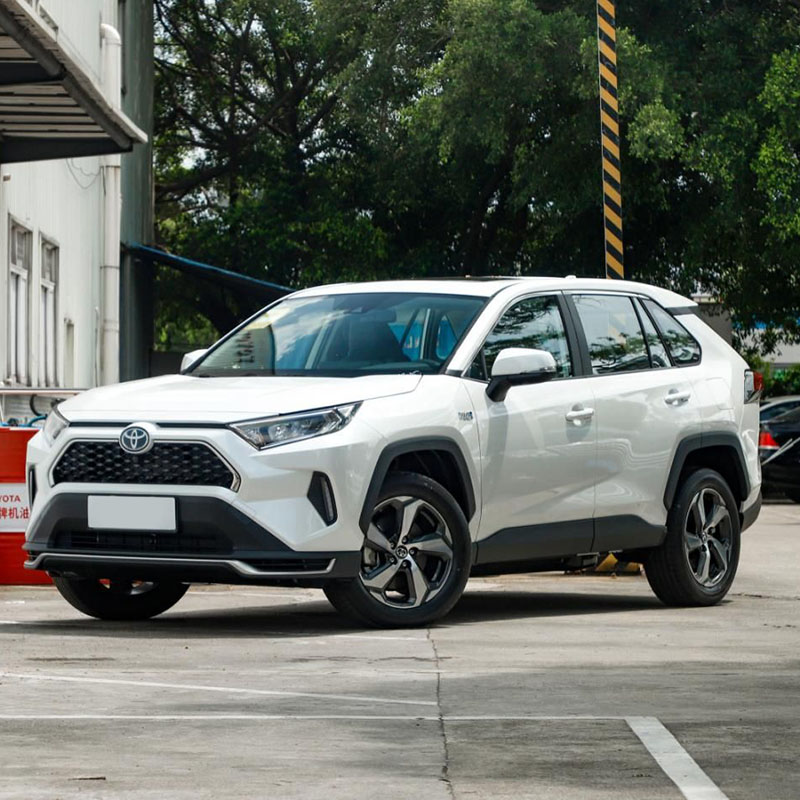

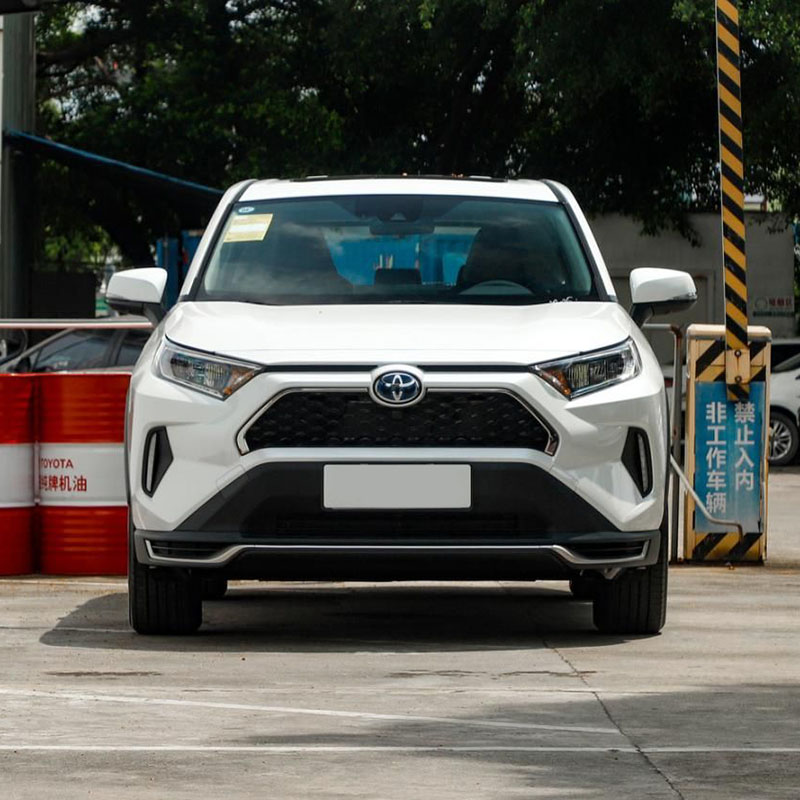

The RAV4 Hybrid Dual Engine retains the styling of the overseas version, incorporating new family design elements while enhancing the overall look with a more fashionable and rugged appearance, exuding a strong SUV vibe. The trapezoidal grille features a honeycomb chrome mesh design, complemented by sharp headlights on both sides, giving the front end a more aggressive look. The Hybrid E+ 2022 model offers three driving modes: pure electric, hybrid, and switchable mode, as well as three driving modes: Eco mode, Sport mode, and NORMAL mode. The four-wheel-drive model also offers a separate TRAIL mode, as it features the electronic four-wheel-drive (E-Four) system.

2.Parameter (Specification) of RAV4 Electric Hybrid Dual Engine SUV

RAV4 Electric Hybrid Dual Engine Configuration
Version	RAV4 Dual Engine 2.5L E-CVT 4WD Elite Plus Edition	RAV4 Dual Engine 2.5L E-CVT 4WD Flagship Edition
Basic Parameters
LengthWidth Height	460018551685	460018551685
Wheelbase	2690	2690
Front and rear track width	1605/1620	1605/1620
Minimum turning radius	5.5	5.5
Curb Weight	1750	1755
Max. load mass	2230	2230
WLTC comprehensive fuel consumption	5.23	5.23
Fuel tank capacity	55	55
Person	5	5
Power System
Engine intake form	Naturally aspirated	Naturally aspirated
Fuel supply method	Mixed jet	Mixed jet
Energy type	Oil electric hybrid	Oil electric hybrid
Emission standard	Chinese VI	Chinese VI
Displacement	2487	2487
Max. torque	221	221
Max. power	131	131
Max. Hp	178	178
(km/h)Max. Speed	180	180
Transmission type	E-CVT	E-CVT
Intelligent electric hybrid dual engine power system
Motor type	Permanent Magnet Synchronous	Permanent Magnet Synchronous
Peak power of electric motor	88 front/40 rear	88 front/40 rear
Peak torque of electric motor	202 front/121 rear	202 front/121 rear
Total motor power	128	128
Battery type	Ternary lithium battery	Ternary lithium battery
Battery brand	Synden	Synden
Suspension, braking, and driving mode
Front/rear suspension system	Front: MacPherson independent suspension Rear: E-type multi link independent suspension	Front: MacPherson independent suspension Rear: E-type multi link independent suspension
Power steering system	EPS	EPS
前/后制动系统Front/rear brake system	Ventilated disc brake	Ventilated disc brake
Four wheel drive system
E-FOUR	●	●
Appearance
Front / rear power windows	●Front/●Rear	●Front/●Rear
Skylight type	●openable panoramic sunroof	●openable panoramic sunroof
One click window lifting function	●whole car	●whole car
Car interior makeup mirror	●driver+lighting ●passenger+lighting	●driver+lighting ●passenger+lighting
Tyre size	225/60R18	225/60R18
Foldable exterior rearview mirror (with heating function)	●	●
Electrically adjustable exterior rearview mirror	●	●
Rear wiper	●	●
Lights
Automatic Headlights	●	●
High/low beam light sources	●LED	●LED
LED daytime running lights	●	●
LED front fog lights	●halogen	●halogen
Adaptive high and low beams	●	●
Headlight height adjustable	●	●

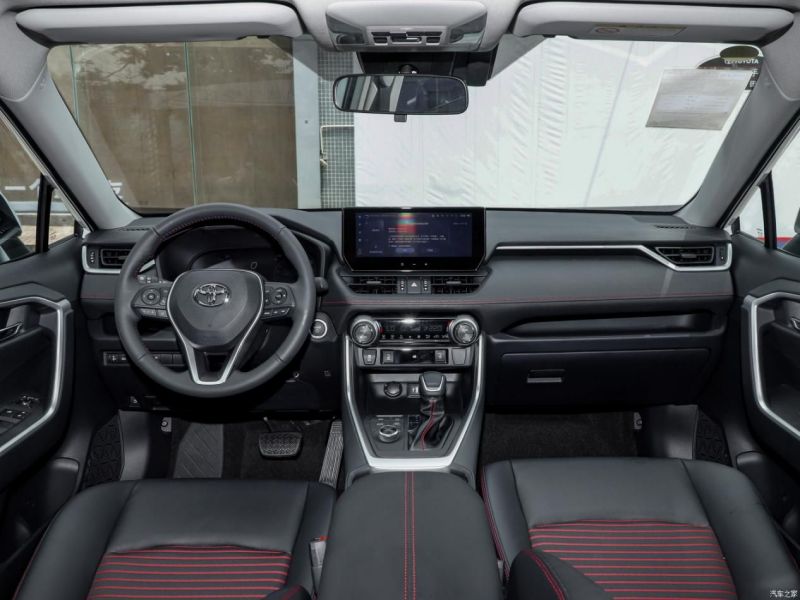

Interior
Multifunctional steering wheel	●	●
Steering wheel material	●Leather	●Leather
Steering wheel position adjustment	●Manual up and down+fore and aft adjustment	●Manual up and down+fore and aft adjustment
Shift mode	●Mechanical gear lever shifting	●Mechanical gear lever shifting
Driving computer display screen	●color	●color
Full LCD instrument panel	●	●
LCD instrument size	●12.3 inch	●12.3 inch
HUD Head Up Digital Display	-	●
Internal rearview mirror function	●Manual anti glare	●Manual anti glare ●Streaming rearview mirror
