Prado 2024 Model 2.4T SUV

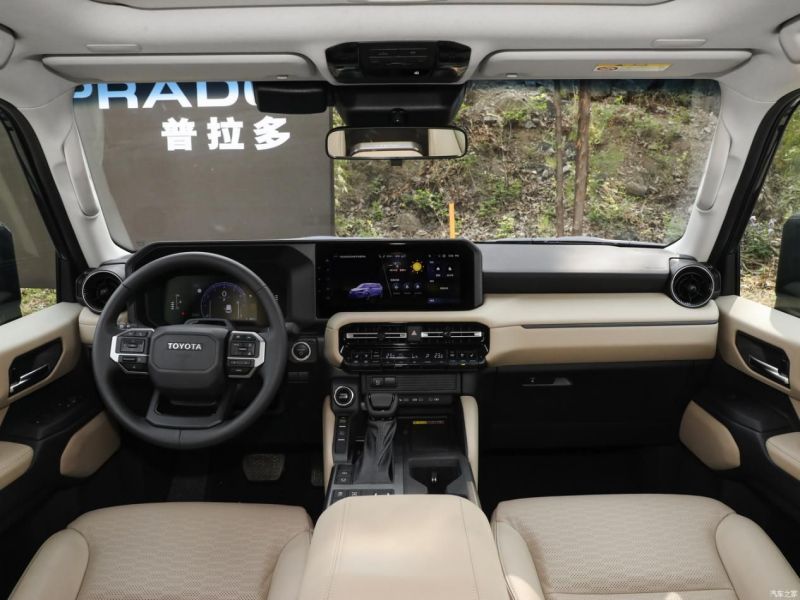

The all-new Prado is built on Toyota's off-road architecture GA-F platform and incorporates the Prado 2024 Model 2.4T SUV. It includes the TSS Intelligent Safety System and Toyota's latest entertainment system. Positioned as a mid-to-large SUV, there are a total of 4 models available, with a price range of 459,800 to 549,800 RMB, offering a 2.4T petrol-electric hybrid powertrain.

Send Inquiry

Product Description

1. Introduction of Prado 2024 Model 2.4T SUV

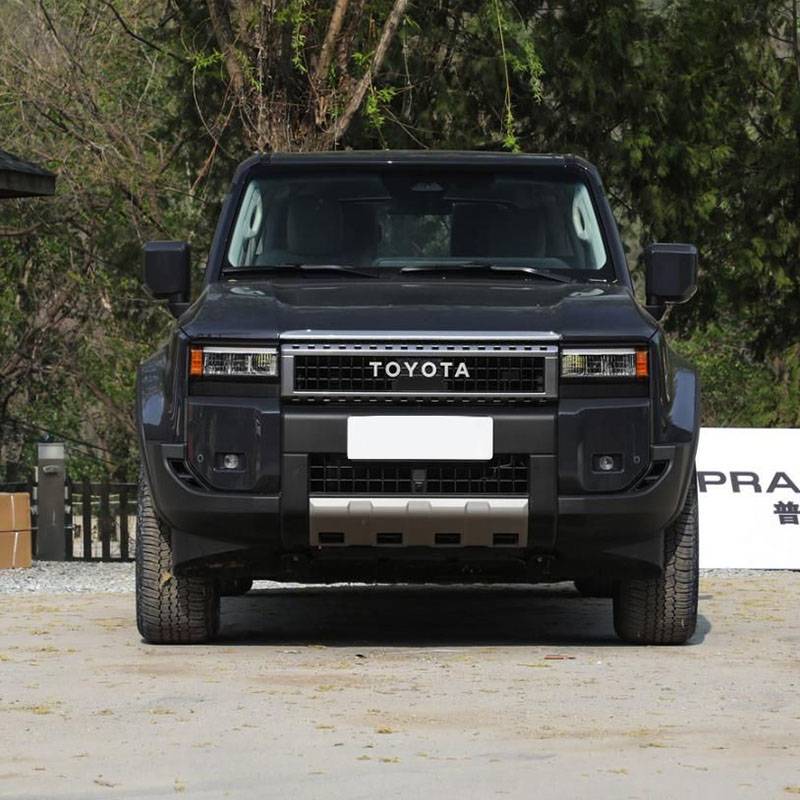

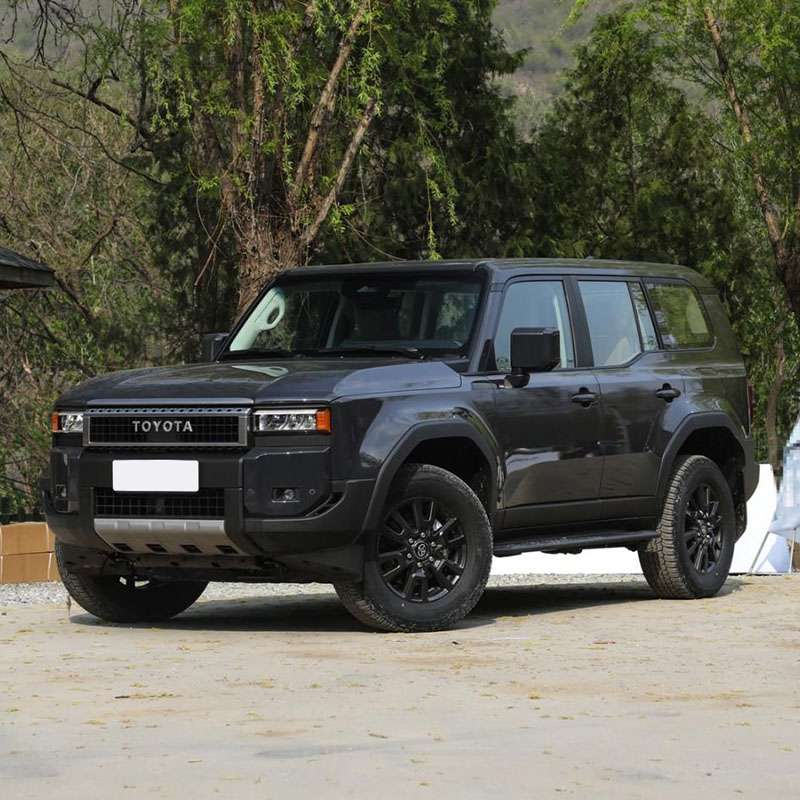

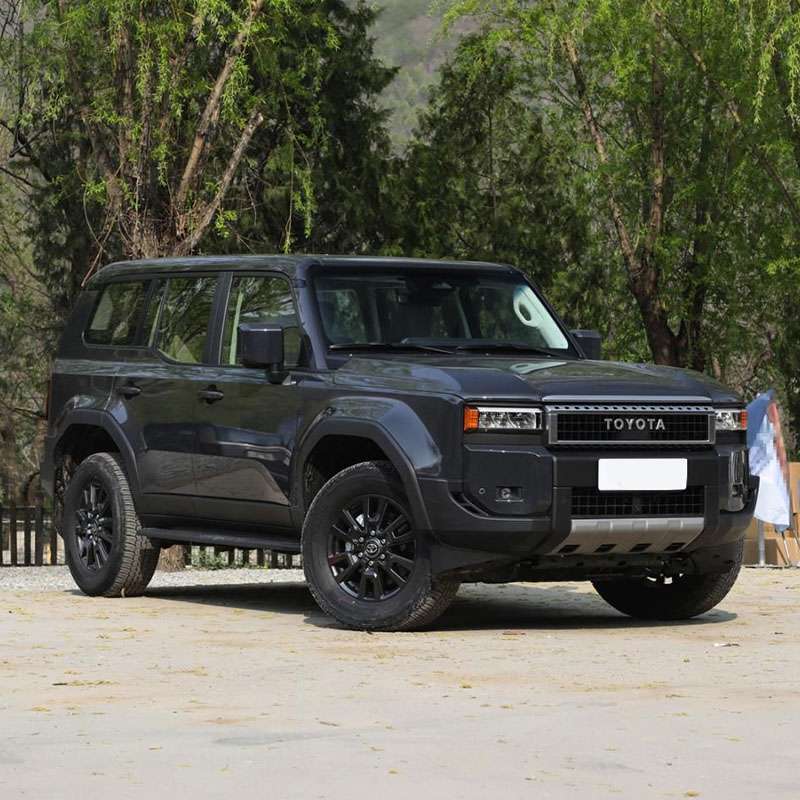

2. The front face features a rectangular grille with a square design, enhanced by a blacked-out interior. The white logo increases its recognizability, and the grille is accented with a silver frame, adding a touch of elegance. The matrix-style headlights on both sides further enhance its visual appeal.

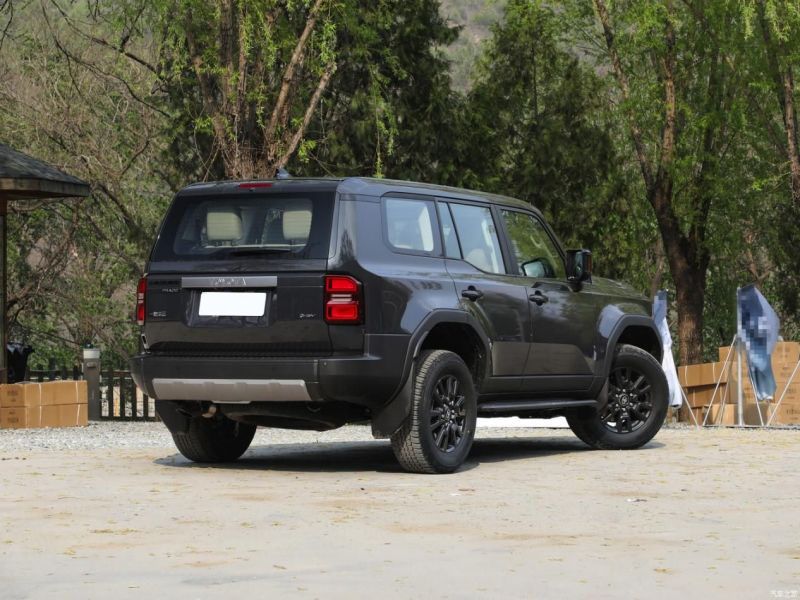

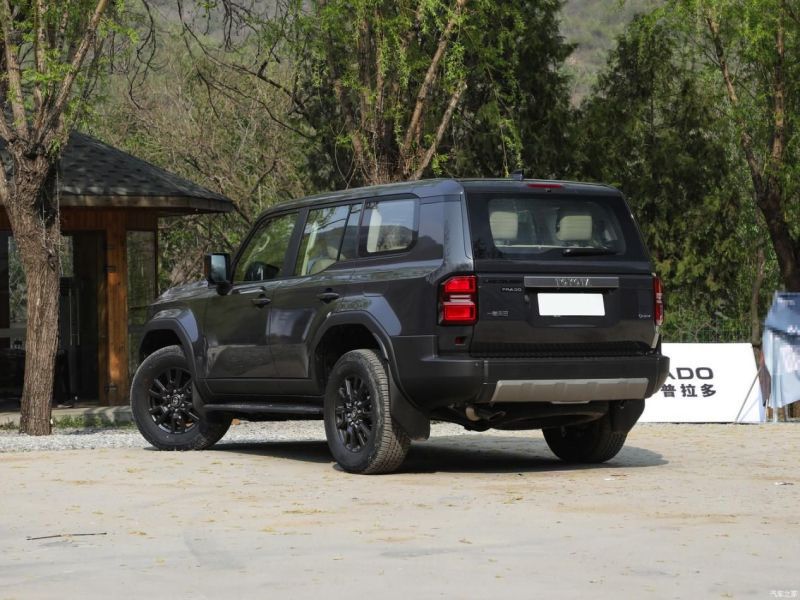

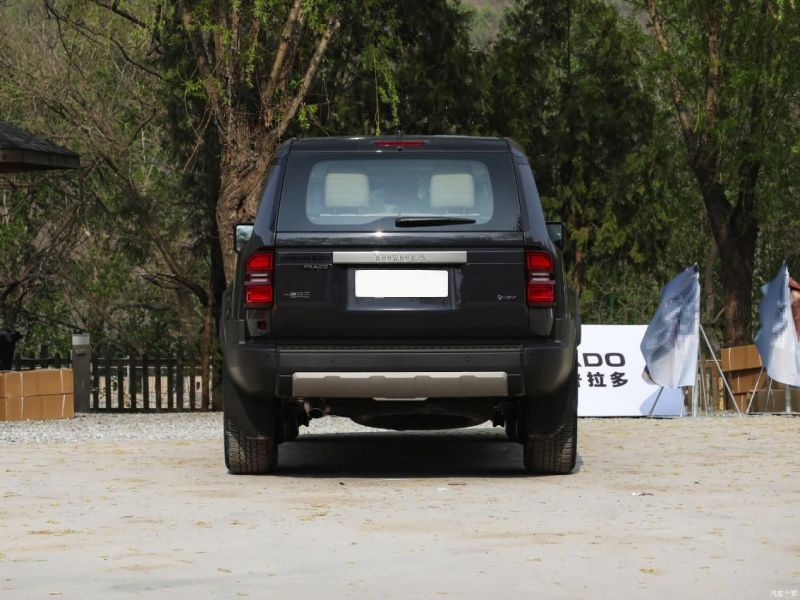

The rear section integrates a high-mounted brake light, with the tail lights arranged vertically. The lower part features a large black wrap-around bumper, complemented by a silver skid plate design, emphasizing its off-road character.

The vehicle's dimensions are 4925 mm in length, 1980 mm in width, and 1910 mm in height, with a wheelbase of 2850 mm.

It is equipped with a 2.4T intelligent dual-engine hybrid system, with the engine delivering a maximum power of 207 kW.

2.Parameter (Specification) of Prado 2024 Model 2.4T SUV

	Prado 2024 model 2.4T Cross BX version 5-seater	Prado 2024 model 2.4T All-round TX version 5-seater	Prado 2024 model 2.4T All-round TX version 6-seater	Prado 2024 model 2.4T Wild WX version 6-seater
Maximum power (kW)	243	243	243	243
Maximum torque (N · m)	630	630	630	630
Body structure	5 door 5-seater SUV		5 door 6-seater SUV
Engine	2.4T 282 Horsepower L4	2.4T 282 Horsepower L4	2.4T 282 Horsepower L4	2.4T 282 Horsepower L4
Electric motor (Ps)	54	54	54	54
Length * Width * Height (mm)	492519401910	492519401910	492519401910	492519401920
Official 0-100km/h acceleration (s)	—	—	—	—
Maximum speed (km/h)	170	170	170	170
Whole Vehicle Warranty	—	—	—	—
Curb weight (kg)	2450	2455	2475	2525
Maximum Laden Mass（kg）	3050	3050	3050	3050
Engine Model	T24A	T24A	T24A	T24A
Displacement (ml)	2393	2393	2393	2393
Intake Form	Turbocharging	Turbocharging	Turbocharging	Turbocharging
Engine Layout	Longitudinal	Longitudinal	Longitudinal	Longitudinal
Cylinder Arrangement	L	L	L	L
Number of Cylinders	4	4	4	4
Number of Valves per Cylinder	4	4	4	4
Valvetrain	DOHC	DOHC	DOHC	DOHC
Maximum Horsepower (Ps)	282	282	282	282
Maximum Power (kW)	207	207	207	207
Maximum Power Speed (rpm)	—	—	—	—
Maximum Torque (N·m)	—	—	—	—
Maximum Torque Speed (rpm)	—	—	—	—
Maximum Net Power (kW)	207	207	207	207
Energy Type	Hybrid Electric	Hybrid Electric	Hybrid Electric	Hybrid Electric
Fuel Rating	NO.95	NO.95	NO.95	NO.95
Fuel Supply Mode	Mixed Injection	Mixed Injection	Mixed Injection	Mixed Injection
Cylinder Head Material	●Aluminum alloy	●Aluminum alloy	●Aluminum alloy	●Aluminum alloy
Cylinder Block Material	●Aluminum alloy	●Aluminum alloy	●Aluminum alloy	●Aluminum alloy
Environmental Standard	Chinese IV	Chinese IV	Chinese IV	Chinese IV
Motor type	permanent magnet/synchronous	permanent magnet/synchronous	permanent magnet/synchronous	permanent magnet/synchronous
Total power of electric motor (kW)	40	40	40	40
Total power of electric motor (Ps)	54	54	54	54
Total torque of electric motor (N-m)	250	250	250	250
Maximum power of front motor (kW)	40	40	40	40
Maximum torque of front motor (N-m)	250	250	250	250
Number of driving motors	●Single motor	●Single motor	●Single motor	●Single motor
Motor layout	●Front	●Front	●Front	●Front
Battery type	●Nickel-Metal Hydride Battery	●Nickel-Metal Hydride Battery	●Nickel-Metal Hydride Battery	●Nickel-Metal Hydride Battery
Cell Brand	●PRIMEARTH	●PRIMEARTH	●PRIMEARTH	●PRIMEARTH
for short	8-speed automatic with manual mode	8-speed automatic with manual mode	8-speed automatic with manual mode	8-speed automatic with manual mode
Number of gears	8	8	8	8
Transmission type	Automatic transmission with manual mode	Automatic transmission with manual mode	Automatic transmission with manual mode	Automatic transmission with manual mode
Driving method	● Front-Wheel Drive with All-Wheel Drive	●Front-Wheel Drive with All-Wheel Drive	●Front-Wheel Drive with All-Wheel Drive	●Front-Wheel Drive with All-Wheel Drive
Four wheel drive form	●Full-Time All-Wheel Drive	●Full-Time All-Wheel Drive	●Full-Time All-Wheel Drive	●Full-Time All-Wheel Drive
Central differential structure	●Torsen Differential	●Torsen Differential	●Torsen Differential	●Torsen Differential
Front suspension type	●Double-wishbone independent suspension	●Double-wishbone independent suspension	●Double-wishbone independent suspension	●Double-wishbone independent suspension
Rear suspension type	●Solid Axle Non-independent Suspension	●Solid Axle Non-independent Suspension	●Solid Axle Non-independent Suspension	●Solid Axle Non-independent Suspension
Assistance type	●Electric power assistance	●Electric power assistance	●Electric power assistance	●Electric power assistance
Vehicle structure	Non-load-bearing type	Non-load-bearing type	Non-load-bearing type	Non-load-bearing type
Front brake type	●Ventilation disc type	●Ventilation disc type	●Ventilation disc type	●Ventilation disc type
Rear brake type	●Ventilation disc type	●Ventilation disc type	●Ventilation disc type	●Ventilation disc type
Parking brake type	●Electronic parking	●Electronic parking	●Electronic parking	●Electronic parking
Front tire specifications	●245/70 R18	●265/65 R18	●265/65 R18	●265/65 R18
Rear tire specifications	●245/70 R18	●265/65 R18	●265/65 R18	●265/65 R18
Spare tire specifications	Full size	Full size	Full size	Full size
Driver/passenger seat safety airbag	Main●/Sub ●	Main●/Sub ●	Main●/Sub ●	Main●/Sub ●
Front/rear side air wrap	Front●/Back -	Front●/Back -	Front●/Back -	Front●/Back -
Front/rear head airbags (air curtains)	Front ●/Back ●	Front ●/Back ●	Front ●/Back ●	Front ●/Back ●
Knee airbag	●	●	●	●
Front center airbag	●	●	●	●
Tire pressure monitoring function	●Tire pressure display	●Tire pressure display	●Tire pressure display	●Tire pressure display
Underinflated tires	—	—	—	—
Reminder of seat belt not fastened	●All vehicles	●All vehicles	●All vehicles	●All vehicles
ISOFIX child seat interface	●	●	●	●
ABS anti lock braking	●	●	●	●
Brake force distribution (EBD/CBC, etc.)	●	●	●	●
Brake Assist (EBA/BAS/BA, etc.)	●	●	●	●
Traction control (ASR/TCS/TRC, etc.)	●	●	●	●
Vehicle stability control (ESC/ESP/DSC, etc.)	●	●	●	●
Lane departure warning system	●	●	●	●
Active braking/active safety system	●	●	●	●
Fatigue driving tips	—	●	●	●
Door Open Warning	—	●	●	●
Forward collision warning	●	●	●	●
Back collision warning	—	●	●	●
Road rescue call	●	●	●	●
